Supports T-Mobile Band 71 and AT&T FirstNet Band 14

Quectel EC25-AF is one modem in a series of LTE category 4 modules adopting standard PCI Express® Mini Card form factor (Mini PCI-E). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.

EC25 Mini PCI-E is available in 11 variants to assure backward-compatible with existing EDGE and GSM/GPRS networks-for remote area applications lacking usable 4G or 3G coverage.

These modems are the EC25-AF North American version with the newest firmware which includes the new T-Mobile Band 71 and AT&T’s FirstNet Band 14.

EC25 Mini PCI-E supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.

KEY BENEFITS

LTE category 4 module optimized for broadband IoT applications

Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage

Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices

MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

NORTH AMERICA CARRIER CERTIFICATION

North America:

Verizon

AT&T

T-Mobile

U.S. Cellular

Canada:

Rogers

Telus

LTE-FDD BANDS

B2/B4/B5/B12/B13/B14/B66/B71

WCDMA BANDS

B2/B4/B5

DOWNLOAD - UPLOAD DATA

LTE-FDD Data Rates (Mbps): 150 (DL)/ 50 (UL)

DC-HSPA+ Data Rates (Mbps): 42 (DL)/ 5.76 (UL)

WCDMA Data Rates (Kbps): 384 (DL)/ 384 (UL)

M.2 Modem with 4 x MIMO & DL 5 x Carrier Aggregation & 256QAM

Quectel EM160R-GL is an LTE Advanced Category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.

EM160R-GL is designed for global market and nearly covers all the mainstream carriers worldwide.

EM160R-GL supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/eCall) extend the applicability of the module to a wide range of applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

Key Benefits

LTE-A Cat 16 module with M.2 form factor

Support DL 5x carrier aggregation and 256QAM

Worldwide LTE-A and UMTS/HSPA+ coverage

Support PCIe standard interface for PC/Laptop application

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

NOTE: The current EM160R-GL modems are new Engineering Samples with the latest Firmware Revision: EM160RGLAUR02A04M4G.  Production versions DO NOT exist (As of Nov 2020).

NOT RECOMMENDED for use with the older versions M2M NEXG H721 due to this router’s high rate of burn out failures.  We will warranty NO modems that are used in the M2M NEXG H721 router. We have not tested the V5 version.

IMPORTANT:  Exercise extreme caution while installing MHF4 connectors to the modem antenna ports.  The ports are delicate and easily damaged.  Assure that the MHF4 connector is perfectly centered, level and aligned with the modem port.  The MFH4 connector will then snap into place using minimum pressure. Do not apply excessive force.

A damaged modem connector port is not covered under warranty.

It is strongly recommended to invest in a quality power strip surge protector (i.e., APC, Belkin,…) to use behind a router and/or electronic equipment.  This will help protect against Transients (momentary spikes/surges in voltage or current) that can be detrimental to expensive equipment.  Transient damage to modems are not covered under warranty.  Protect your equipment!

M.2 Modem with 2 x Carrier Aggregation

Quectel EM06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers M2M-optimized speeds of 300Mbps downlink and 50Mbps uplink peak data rates.

Designed in the M.2 form factor, EM06 contains 3 variants (EM06-E, EM06-J, EM06-A) for different target regions and these variants nearly cover all the main stream carriers worldwide.  The EM06-A is the variant for North America.

EM06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, set top box, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

NOTE:  It is strongly recommended to invest in a quality power strip surge protector (i.e., APC, Belkin,…) to use behind a router and/or electronic equipment.  This will help protect against Transients (momentary spikes/surges in voltage or current) that can be detrimental to expensive equipment.  Transient damage to modems are not covered under warranty.  Protect your equipment.

IMPORTANT:  Exercise extreme caution while installing MHF4 connectors to the modem antenna ports.  The ports are delicate and easily damaged.  Assure that the MHF4 connector is perfectly centered, level and aligned with the modem port.  The MFH4 connector will then snap into place using minimum pressure.  Do not apply excessive force.  A damaged modem connector port is not covered under warranty.

Key Benefits

LTE-A Cat 6 module with M.2 form factor, optimized for M2M and IoT applications

Support LTE-A carrier aggregation

Worldwide LTE-A and UMTS/HSPA+ coverage

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Feature refinements: supports DFOTA* and DTMF

MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Enhanced Features

MIMO: 2 × 2, 4 × 2, DL

Digital Audio and VoLTE (Voice over LTE)

(Optional)

(U)SIM Card Detection

DTMF: Dual-tone Multi-frequency

Support Dual SIM Single Standby*

DFOTA: Delta Firmware over the Air

GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS

Electrical Characteristics

Output Power:

Class 3 (23dBm±2dB) for LTE-FDD

Class 3 (23dBm±2dB) for LTE-TDD

Class 3 (24dBm+1/-3dB) for WCDMA

Consumption

50uA @Power off

4.36mA @Sleep, Typ.

22.3mA @Idle

Software Features

Support eSIM

MBIM Driver:

Windows 10

USB Serial Driver:

Windows 7/8/8.1/10,

Linux 2.6/3.x/4.1~4.15,

Android 4.x/5.x/6.x/7.x/8.x/9.x

RIL Driver:

Android 4.x/5.x/6.x/7.x/8.x/9.x

NDIS Driver

Windows 7/8/8.1/10

M.2 Modem with 3 x Carrier Aggregation

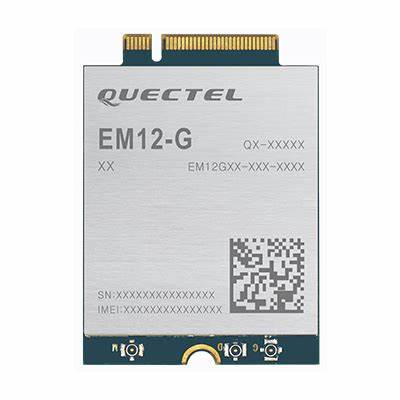

Quectel EM12-G is LTE Advanced category 12 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates.  Designed in the M.2 form factor, EM12 is compatible with Quectel Cat6 module EM06 and future higher category modules which will facilitate customers to migrate between the different categories.

EM12-G is designed for global and nearly covers all the main stream carriers worldwide.

EM12-G supports Qualcomm® IZat™ location technology Gen9HT Lite (GPS, GLONASS, BeiDou, Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

NOTE:  NOT RECOMMENDED for use with the M2M NEXG H721 due to this router’s high rate of burn out failures.  We will warranty NO modems that are used in the M2M NEXG H721 router.  It is strongly recommended to invest in a quality power strip surge protector (i.e., APC, Belkin,…) to use behind a router and/or electronic equipment.  This will help protect against Transients (momentary spikes/surges in voltage or current) that can be detrimental to expensive equipment.  Transient damage to modems are not covered under warranty.  Protect your equipment.

IMPORTANT:  Exercise extreme caution while installing MHF4 connectors to the modem antenna ports.  The ports are delicate and easily damaged.  Assure that the MHF4 connector is perfectly centered, level and aligned with the modem port.  The MFH4 connector will then snap into place using minimum pressure.  Do not apply excessive force.  A damaged modem connector port is not covered under warranty.

Key Benefits

LTE-A Cat 12 module with M.2 form factor, optimized for eMBB and IoT applications

Support DL 3x carrier aggregation and 256QAM

Worldwide LTE-A and UMTS/HSPA+ coverage

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Feature refinements: supports DFOTA and VoLTE

MIM

Software Features

MBIM Driver: Windows 10

USB Serial Driver: Windows 7/8/8.1/10, Linux 2.6/3.x/4.1-4.14, Android 4.x/5.x/6.x/7.x

RIL Driver: Android 4.x/5.x/6.x

NDIS Driver: Windows 7/8/8.1/10

ECM Driver*: Linux 2.6/3.x/4.1-4.14

Gobinet Driver: Linux 2.6/3.x/4.1-4.14

QMI_WWAN Driver: Linux 3.x (3.4 or later)/4.1-4.14

Protocols

PPP/QMI/NTP*/TCP*/UDP*/FTP*/HTTP*/PING*/HTTPS*/SMTP*/MMS*/FTPS*/SMTPS*/SSL*

General Features

3GPP E-UTRA Release 12

Bandwidth: 1.4/3/5/10/15/20MHz

Supply Voltage: 3.1V~4.4V, 3.7V Typ.

Temperature Range:

Operating temperature Range: -30°C ~ +60°C

Extended Temperature Range: -40°C ~ +85°C

Dimensions: 42.0mm × 30.0mm × 2.3mm

M.2 Package

Approx. TBD

3GPP TS27.007 and Quectel Enhanced AT Commands
